Equipment Anchorage
Overview

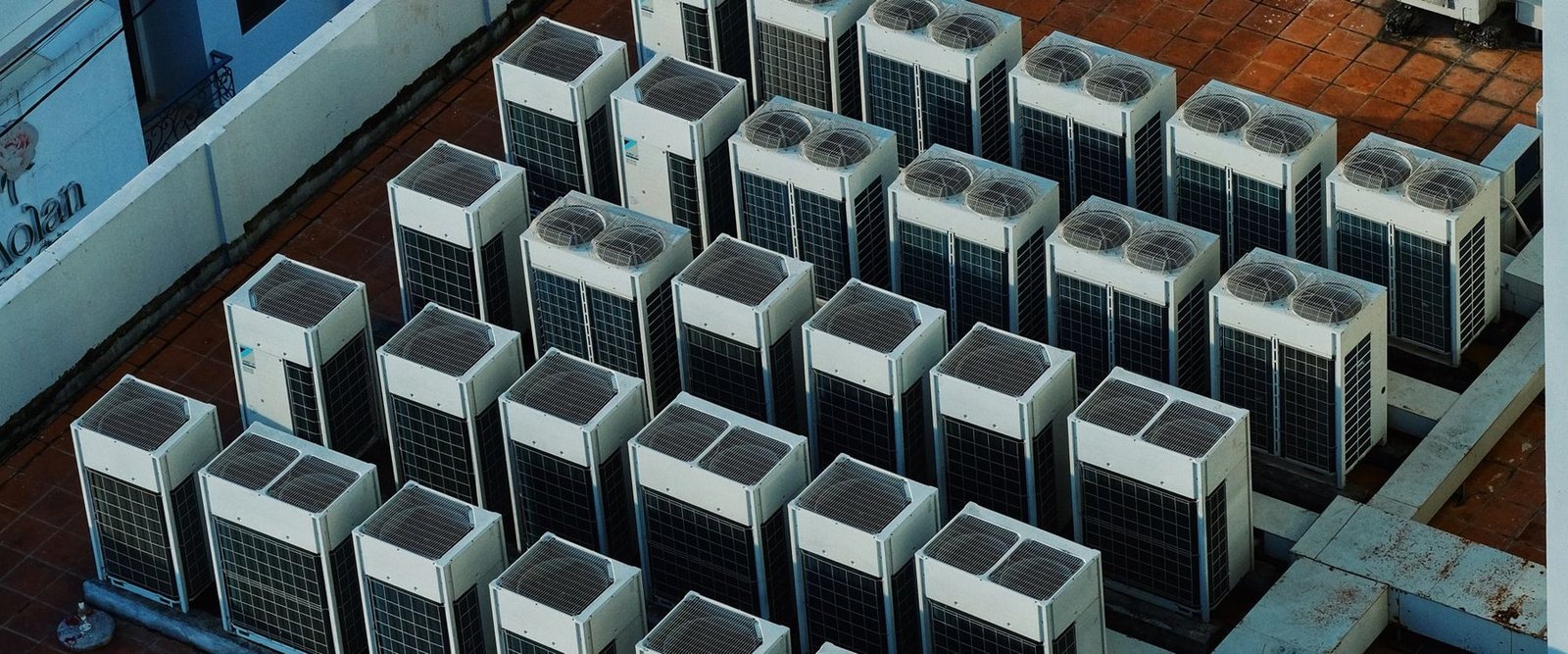

Rooftop units, generators, tanks and other mechanical equipment must stay in place in wind and earthquakes, and the framing carrying them must be adequate. We design the supports, curbs, restraints and anchorage for the seismic and wind forces required by ASCE 7, check the supporting structure, and prepare stamped details for the permit.
Typical Projects
- Rooftop HVAC Unit Replacements and Curb Adapters
- Generators, Fuel Tanks and Transformers
- Rooftop Screens, Platforms and Dunnage
- Tall Cabinets, Racks and Mechanical Equipment Inside Buildings
Common Structural Needs
Supporting Structure
Roof beams, joists and deck checked for the operating weight of the equipment and its supports.
Seismic Force
Equipment forces from the nonstructural component provisions of ASCE 7 Chapter 13, based on mounting height and component importance.
Wind Uplift and Sliding
Rooftop equipment wind forces from ASCE 7 and the restraint needed to resist them.
Anchors
Anchor capacity in concrete, steel or wood, including edge distance and, for post-installed anchors in concrete, the required evaluation report.
Vibration Isolators
Restraints that allow isolators to work without letting the equipment move under earthquake or wind loading.
Load Path
Forces carried into the building structure rather than the roofing.
Project Deliverables
- Structural Calculations
- Construction Drawings
- Structural Details
- Specifications and General Notes, as Applicable
- Permit Response / Plan-Check Support
- Construction-Phase Engineering Services, When Included in Scope
